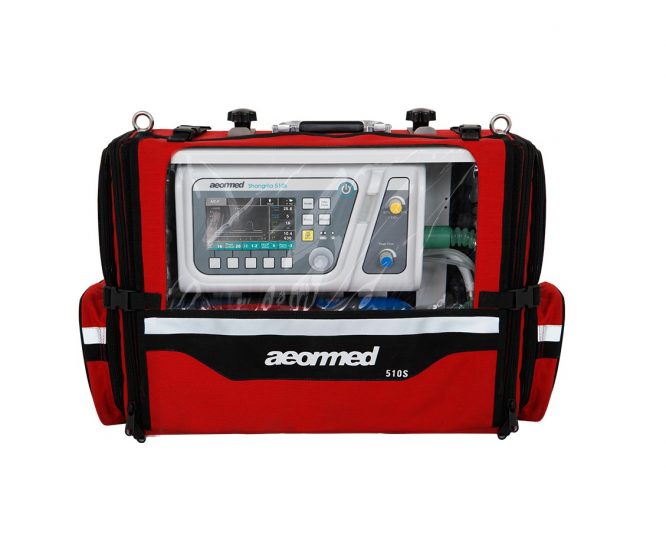

SHANGRILA 510S EMERGENCY TRANSPORT PORTABLE VENTILATOR

SHANGRILA 510S EMERGENCY TRANSPORT PORTABLE VENTILATOR

NEW STOCK AROUND END APRIL 2020 ONLY ORDERED ON REQUEST BY CLIENT

NBXXX…. PLEASE NOTE PRICES ARE SUBJECT TO CHANGE ANYTIME DUE THE CURRENT RAND DOLLAR CHECK ON UPDATED PRICE 1st.

Local Stock BUT TAKES AROUND 4 TO 7 WORKING DAYS

Disclaimer: Every effort is made to make sure the stock availability selector is accurate, however, due to technical limitations the information will not always be a guarantee of stock available in store. Please contact the store directly to be certain of stock availability. H M Security cannot be held liable in the event that stock is not confirmed in store by yourself BEFORE you place orders thank you

CREDIT CARDS NOW WELCOME BUT TAKES AROUND 48 HRS TO PROCESS +++ If THESE ARE USED ADD 5% TO VALUE OF ITEM AS WE ARE CHARGED FOR THIS FUNCTION

DELIVERY IS NOT FREE ASK QUESTIONS ON COST THERE OF, THANK YOU.

Features
Simple operation, compact design, reliable performance
Safty Guarantee
Meets with EN1789 standard
IPX4 waterproof level
Applications
Emergency-Transport-Intra-hospital transfer-Recovery

Name : Shangrila510S Emergency portable ventilator
Ventilator modes :
A/C-V with Sigh – A/C-P – SIMV-V
SIMV-P – SPONT/PSV – CPAP
Manual – Apnea Backup ventilation
VT – 0-2000ml
Dimensions – 300mm*156mm*168mm
Weight – Main unit Approx. 3.2 kg (7.3 lbs)
Main unit & Accessories Approx. 8 kg (17.6 lbs)

Combines advanced technology and versatile ventilation functions.
Meets the breathing requirements of adults, pediatric and infant patients
Pneumatically driven electronically controlled

Equipped with advanced technologies, comprehensive functions and user-friendly design maximizes the cost-effectiveness while continuing reliability and safety

Comprehensive functions with advanced technologies
• Integrated with Versatile Ventilation Modes
• Apnea back up ventilation
• Manual Intervention Functions
• FiO2 40% to 100% continuously adjustable
• Alarm silence
• Electronically controlled PEEP

Comprehensive Accessories
• Suction unit • 2.8L Oxygen cylinder kit • Oxygen sensor
• Hanging plate assembly • Bluetooth module

Ventilation Modes

A/C-V with sigh A/C-P

SIMV-V SIMV-P

Parameters

Tidal Volume: 0~2000 ml

Respiration Rate: 1~120 bpm (A/C mode) 1~40 bpm (SIMV mode)

I:E Ratio: 1:10~4:1

FiO2: 40%~100%

Trigger Sensitivity: Pressure trigger: -20~0 cmH2

Flow Trigger: 2~30 L/min

PEEP: 0~30 cmH2O

Screen Size:
5〞LCD Screen
Dimension (WxDxH):
168 mm x 156 mm x 300 mm

Battery Operating Time:

Approx. 4.5H

Weight:
3.2 kg (Main unit)

8kg (Main unit & Accessories)
